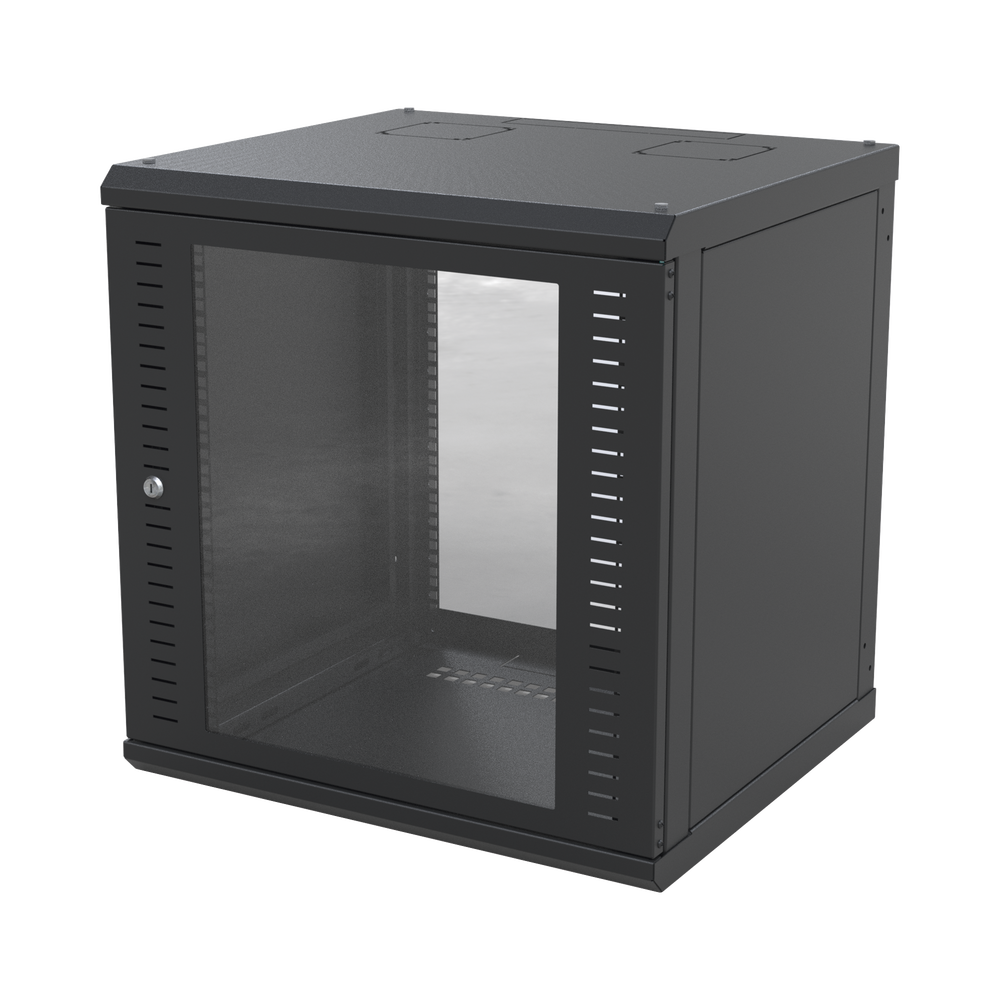

19 12U Wall Mount Cabinet, Single Section, Tempered Glass, Welded frame

SR1909GFP Spec Sheet 3.1.1

Functional Features

Easy to install on the wall
Impact-resistant glass window
Removable side for equipment modification or installation
Removable front racks
Security metal sheet door
Removable door, changeable opening direction
Welded frame body to ensure stability
Excellent for repeaters and surveillance equipment

Applications

Radio communication equipment such as repeaters and power supplies
Security monitoring stations: for recorders and switches
Control data centers data transmitting via air
Managing high-performance copper and fiber patch cables

Physical Characteristics

Application: indoor.
Material: high-quality steel.
Rack Units: 12.
External dimensions: 23.62 x 24.41 x 21.06″ (600 x 620 x 535 mm)
Weight: 46.3 lbs (21 kg)
Color: black, semi-matte

Recommendations:

• Ensure that the installation is performed by a trained professional

• Check if the hardware is properly adjusted periodically

• Set up a maintenance plan to clean the hardware
