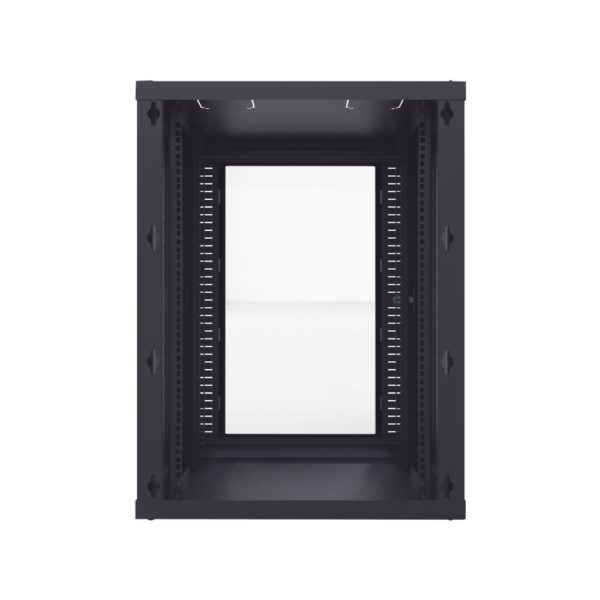

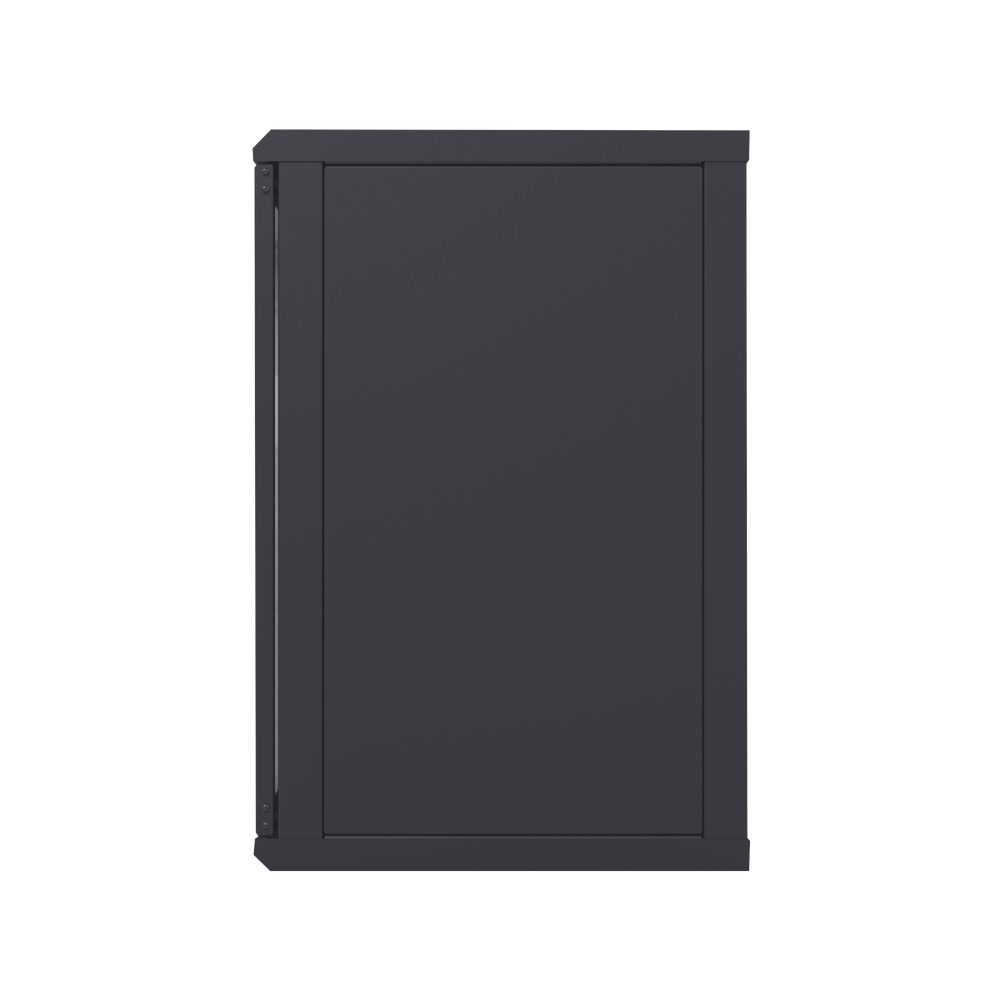

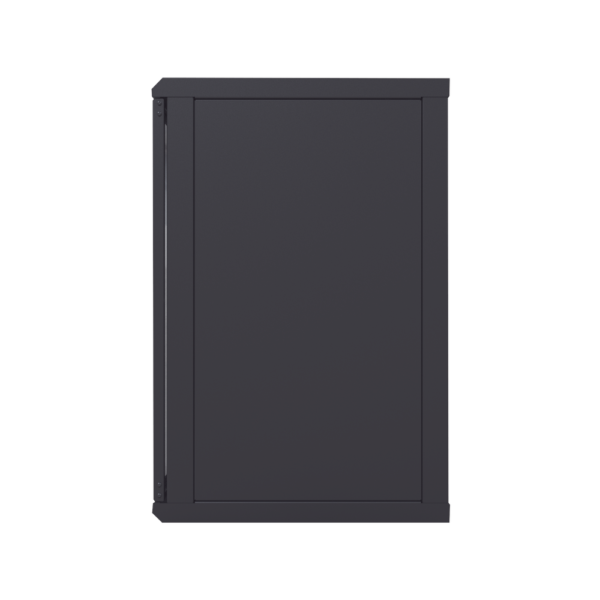

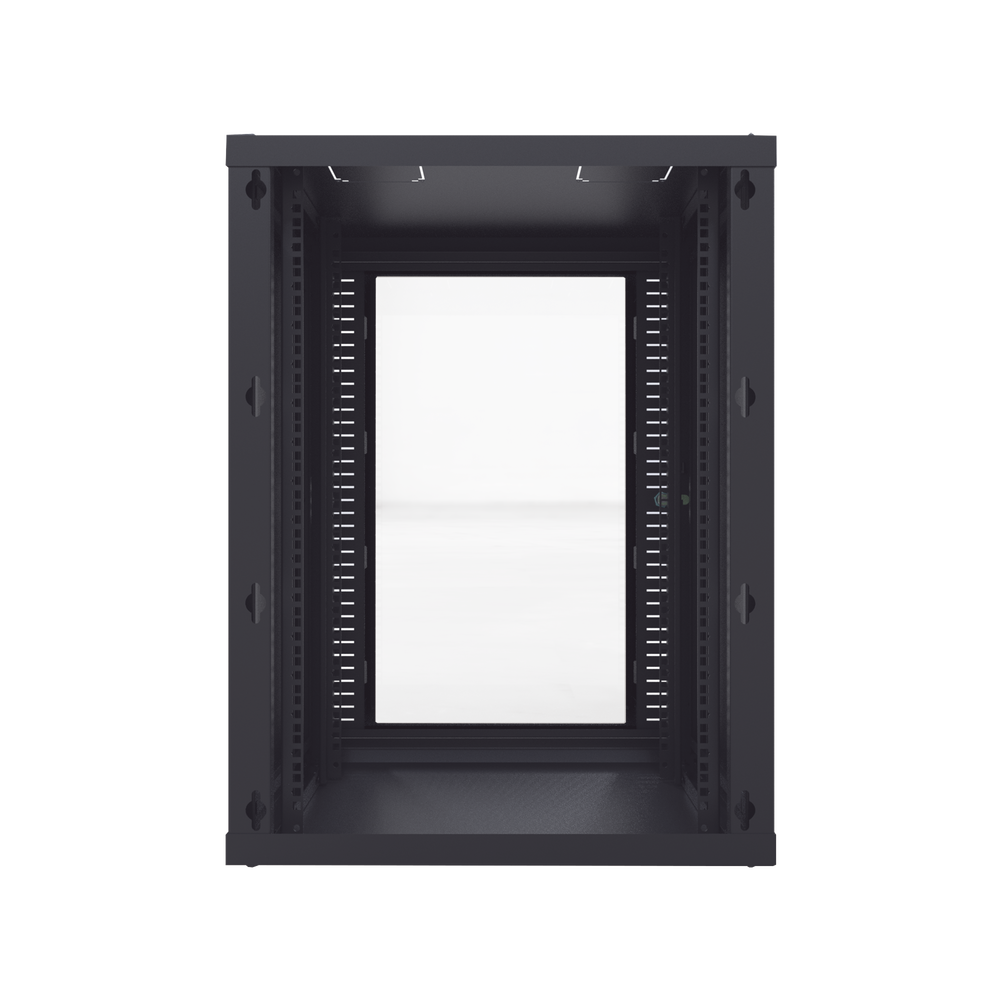

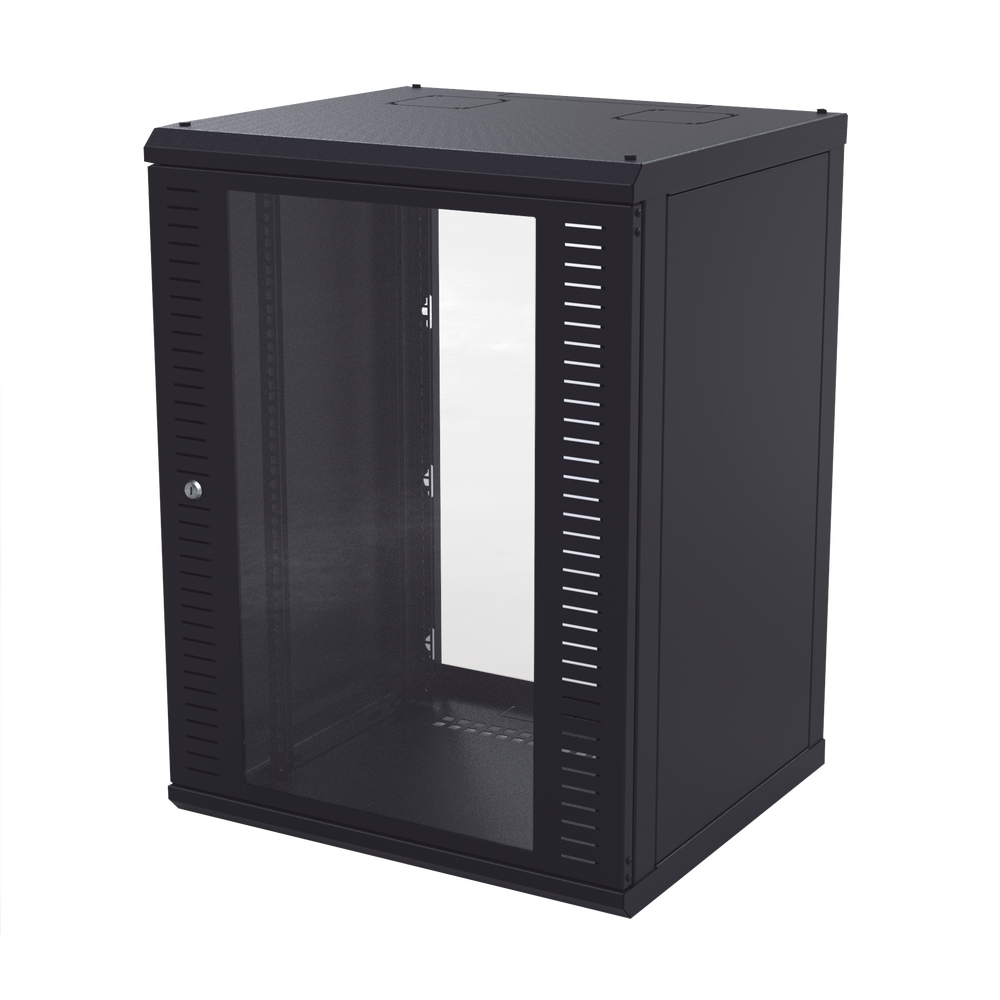

19 24U Rack Wall Mounted, Single Section Enclosure, Tempered Glass Front

Functional features:

• Impact-resistant glass window.
• Removable side.
• Removable front racks.
• Double sheet (front door and side).
• Opening at the top and bottom for wiring to wall.
• Door can be placed to open in both directions.
• Remove door.
• Welded frame body for more stability.
• Excellent for repeaters and surveillance equipment.

Application:

• Radio communication equipment such as repeaters and power supplies.
• Security monitoring stations, recorders and switches.
• Control data centers transmitting via air.
• Managing high-performance copper and fiber patch cable.

Physical Characteristics:

• Application: indoor.
• Material: steel.
• Weight:
• External dimensions: 23.81 x 45.47 x 21.06″ (605 x 1155 x 535 mm) (W x H x D).
• Rack Units: 24

Painting:

• Color: black, semi-matte.
• 5-step electrostatic process: degreasing, rinse, iron phosphate, rinse and sealed.
• Polyester primer.

Recommendations:

• Ensure that the installation is performed by a trained professional.
• Check if the hardware is properly adjusted periodically.
• Set up a maintenance plan to clean the hardware.

* Color may vary. Weight without accessories and packaging. We manufacture cabinets to suit your needs. If you have any questions, please contact us.
