Features:

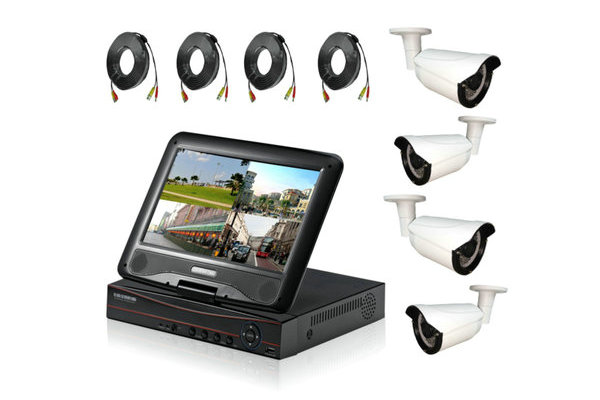

● 4CH AHD DVR Kit
● 4CH 1080P/960P/720P HD Bullet Camera
● HD fixed Lens 3.6mm/F2.0
● IR LED: 18PCS SMD 14MIL IR
● IR Range: >30m
● Waterproof IP66
● Support mobile phone live view and Email alarm
● Mega Pixel HD image, realtime record, playback, synchronous video & audio input
● Support remote control, USB mouse control
● High speed backup/upgrade/record via USB 2.0
● Support: HDMI/VGA/Network
● Support P2P, Mobile APP
| Model | JYR-10M9714AHD-Kit/1.0MP | JYR-10M9714AHD-Kit/2.0MP |
| Image Sensor | 1/4″ Aptina CMOS,1.0 Megapixels,IR-CUT | 1/2.8″ SONY CMOS,2.0 Megapixels,IR-CUT |
| Effective Pixels | 1280(H)×720(V) | 1920(H)×1080(V) |
| Video Frame Rate | PAL: 25fps NTSC: 30fps | |
| Electronic Shutter | Auto: PAL 1/50-1/100, 000Sec;NTSC 1/60-1/100, 000Sec | |
| Synchronization | Internal | |
| Mini. Illumination | 0.001Lux/F1.2(AGC ON), 0Lux IR on | |
| Video Output | 1-channel BNC HDAHD CVI/TVI normal analog high definition video output | |
| Camera Features | Max. IR LED Length | 30m, Smart IR |
| IR LED | 18PCS SMD 14MIL IR | |
| Day/Night | Auto(ICR) / Color / B/W | |
| Noise Reduction | 2D | |
| Lens | Focal Length | 3.6mm/F2.0 |
| Lens Type | Board Lens | |
| Transmission Distance | Over 500m via 75-3 coaxial cable | |
| Power Supply | DC12V±10% | |
| Ingress Protection | IP66 | |
| Power Consumption | Max 4W | |
| Working Environment | -30°C~+60°C / Less than 95%RH | |
| Digital Video Recorder | ||
| Model | DVR-6104M-AHD | |
| Screen size | 10.1 inch LCD (1024×768) | |
| Video Compression Format | H.264 | |
| Video System | NTSC / PAL | |
| Video Input | 4CH BNC input(composite video signal 1Vp-p 75Ω BNC) | |
| Video Output | 1CH VGA/1CH HDMI | |
| Audio Input/Output | 1CH audio input,1CH audio output(RCA) | |
| Maximum Recording Rate | 1080P: 1920×1080@15fps, 720P:1280×720@30FPS | |
| Image Quality Setting | Supper Best,Well,Good,Medium,Normal and Bad | |
| Hard Disk Storage | Support 1 SATA HDD(each max4TB) | |
| Multiplex Operation | Live display/record/playback/backup/network transmit | |
| Hybrid mode | 4x 1080P AHD + 4 x 1080P ip camer/normal analog camera | |
| Recording Mode | Manual/Timer/Motion/Alarm | |
| Playback Mode | Multiple slow and rapid play speeds,manual and single-frame play modes,and support of drag the sliding bar to set. | |
| Backup Device | USB flash drive,USB hard disk and network backup | |
| Pre-alarm Recording | Recording for 10 seconds before alarming | |
| Network Protocol | TCP/IP、PPPOE 、DDNS and NTP | |
| Ethernet remote view | Support remote surveillance up to 10 users simultaneously | |
| Video Adjustable | Hue /Saturation /Contrast /Brightness adjust | |
| Power Source | 12V/3A | |
| Support | CMS software;Mobilephone View;Electronic zoom;VGA Interface;Log record function;Image Tour;IR Remote control;Video Loss Detection;PTZ Control;USB Mouse;Key Lock(Password Protection);Power-down recovery function;GUI OSD | |
