C3100 One-Door Access Controller Easy management 30,000 Cards Metal Cabinet and 12VDC3A Power Supply Included

Features
– Access control.

Capacity
– Cards: 30,000
– Passwords: 30,000
– Events: 100,000
(Up to 32 GB Expandable Events Memory with SD Memory)

Communication
– TCP / IP and RS485.
– Input: multi-format Wiegand.

Hardware

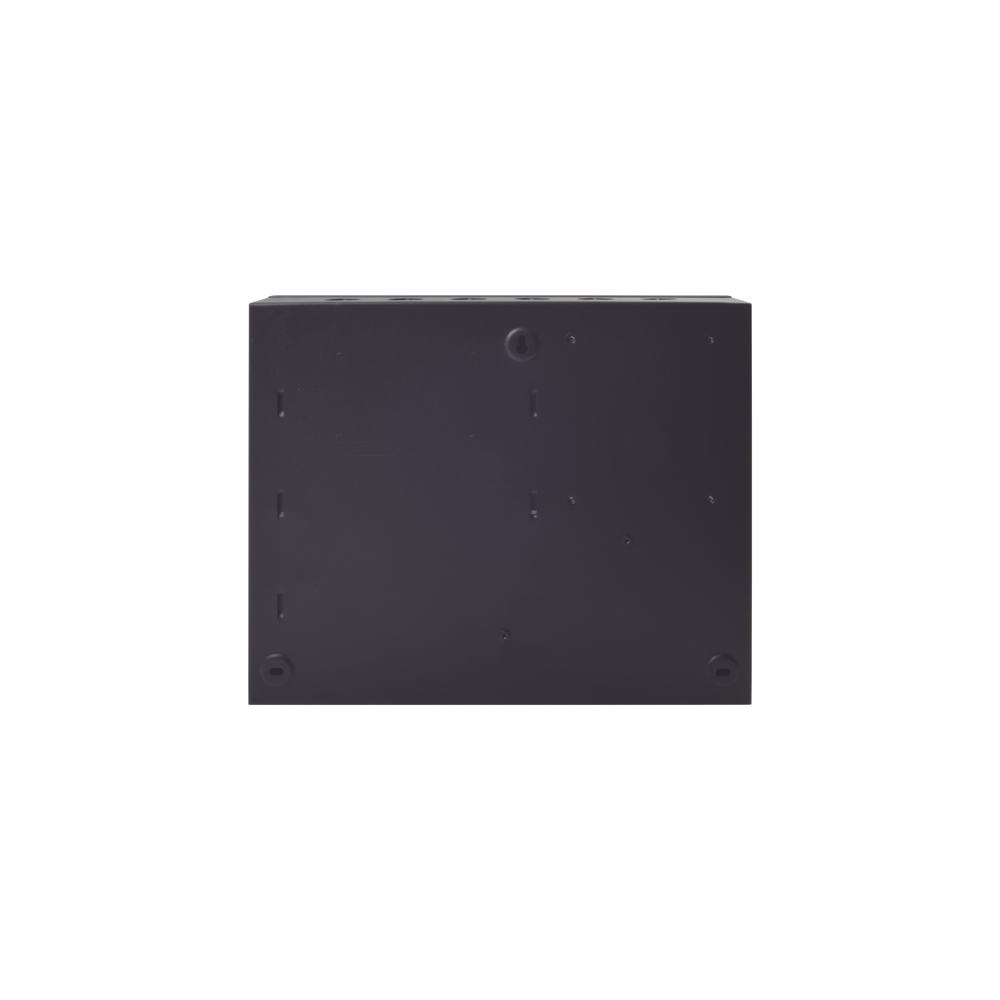

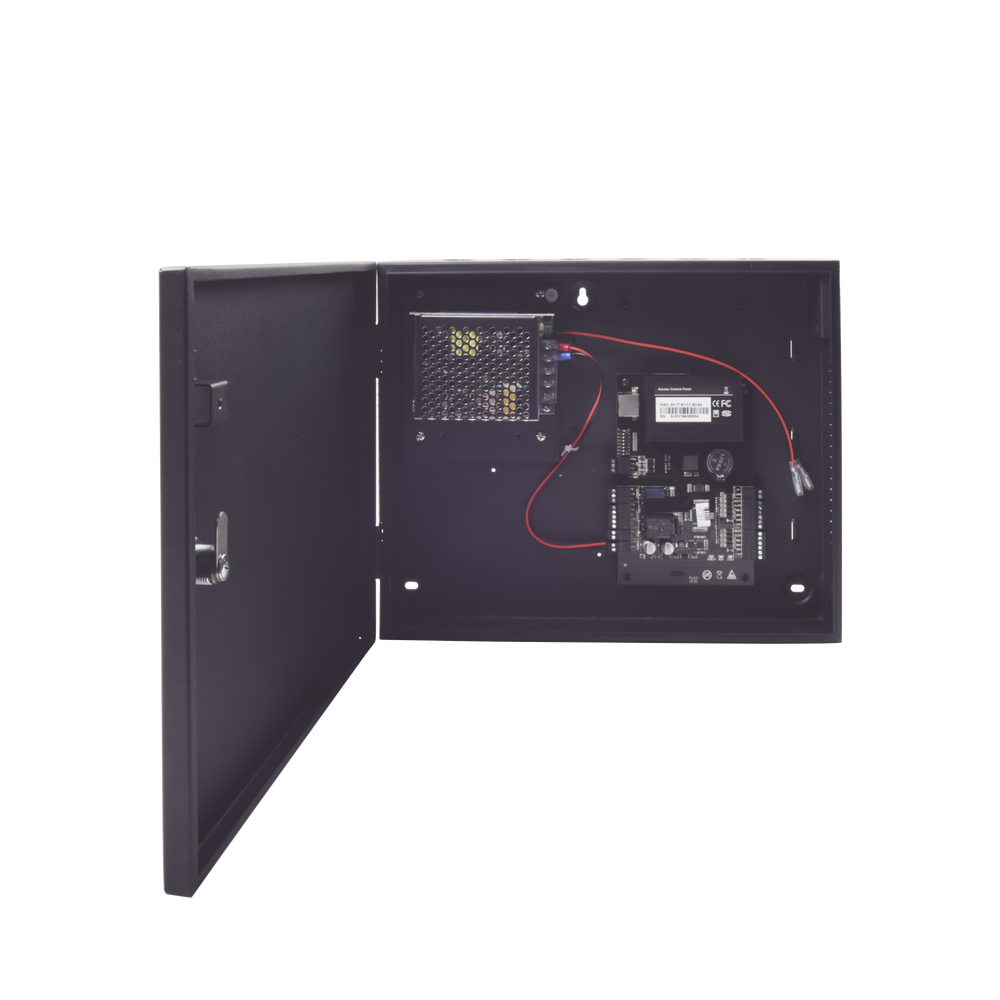

– Metal cabinet.
– Includes 12VDC power / 3A battery charger.

Access Control Functions
– Access control by schedules and doors.
– Verification Methods may be combined:
• Card + Password (with SYSKR602EKB Reader)
– Multi-user Verification.
– Anti-passback.
– Energized relay function.

Connections
– 1 relay output NC / NO / COM for board.
– 1 Auxiliary relay output NC / NO / COM.
– Exit button and magnetic sensor.

Power
– 12VDC / 100mA.
– Includes 12VDC / 3A power (Battery not included).

Compatible Readers
– Proximity:
• SYSKR600E and SYSKR601E.
• Supports 2 readers per door.

– Proximity with keyboard:
• SYSKR602EKB.
• Supports 2 readers per door.

– Long Range Readers:
• PRO6RF and PRO12RF.
• Supports 2 readers per door.

Additional Information
– Operating Temperature: 0-55 ° C.
– Dimensions: 380 x 290 x 80 mm.
– Includes Management Software (in Spanish).
– 1 Year Warranty.
