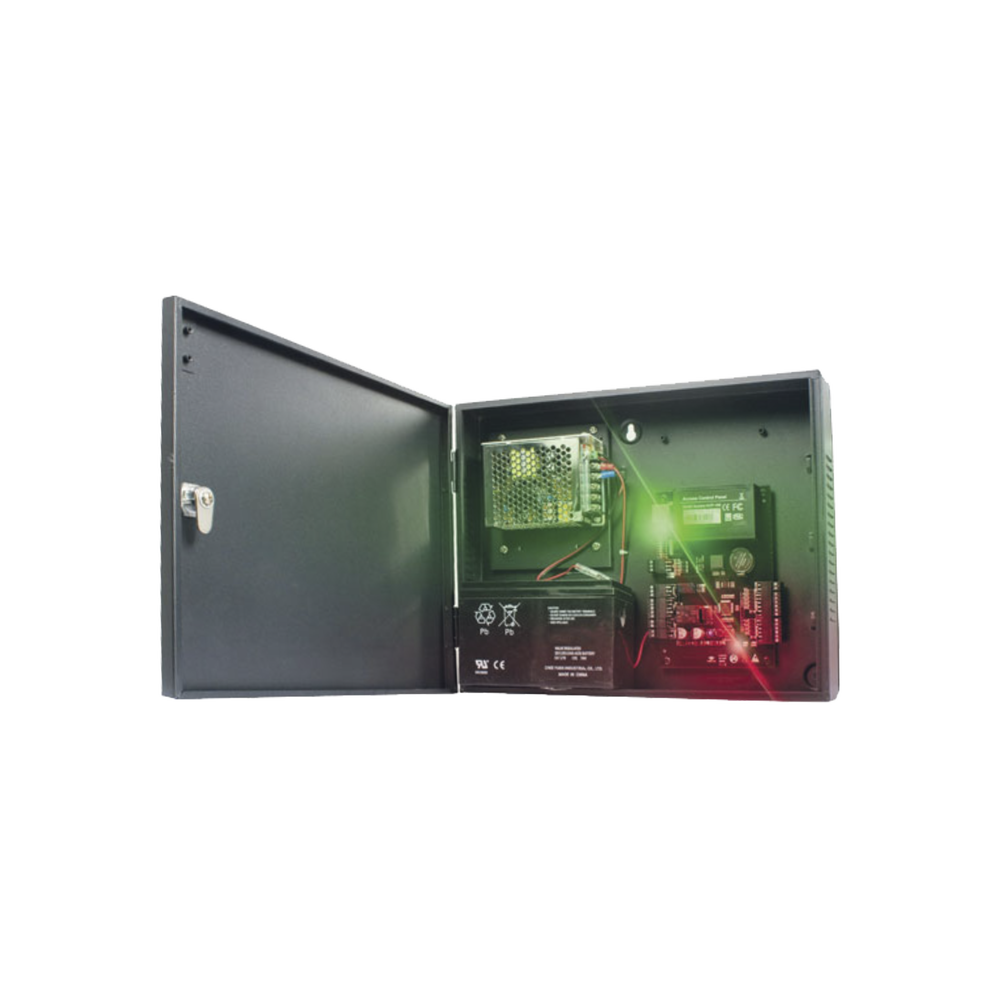

C3200 Two-Door Access Controller Easy management 30,000 Cards Metal Cabinet and 12VDC3A Power Supply Included

Features
– Access control

Capacity
– Cards: 30,000
– Passwords: 30,000
– Events: 100,000
(Up to 32 GB Expandable Events Memory with SD Memory)

Communication
– TCP / IP and RS485
– Input: multi-format Wiegand

Hardware
– Metal cabinet
– Includes 12VDC power / 3A battery charger

Access Control Functions
– Access control by schedules and doors
– Verification Methods:
• Card + Password (with Reader SYSKR602EKB)
– Multi-user verification
– Interlock
– Anti-passback
– Energized relay function

Connections
– 2 relay output NC / NO / COM for board
– 2 Auxiliary relay output NC / NO / COM
– 2 Auxiliary output
– Exit button and magnetic sensor

Power
– 12VDC / 100mA
– Includes 12VDC / 3A power (Battery not included).

Compatible Readers
– Proximity:
• SYSKR600E and SYSKR601E
• Supports 2 readers per door

– Proximity with keyboard:
• SYSKR602EKB
• Supports 2 readers per door

– Long Range Readers:
• PRO6RF and PRO12RF
• Supports 2 readers per door

Additional Information
– Operating Temperature: 0-55 ° C
– Dimensions: 380 x 290 x 80 mm
– Includes Management Software (in Spanish)

*1 Year Warranty
