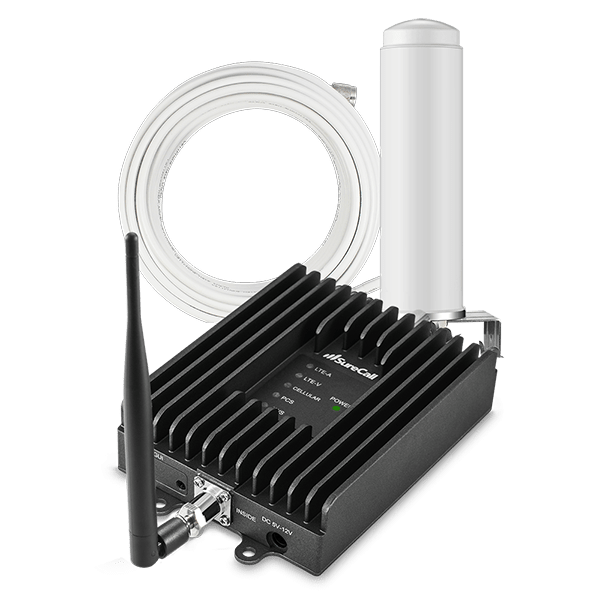

Fusion2Go 3.0 RV Kit web--min

Fusion2Go 3.0 RV

RV Use

Boosts 3G & 4G LTE Signal

Auto-Adjusting Gain

Permanent Antenna

SKU: ESMB0004 Categories: Data & Communication, Mobile Booster, Telecommunications Tags: SIGNAL BOOSTER, TELECOM

Data Sheet Fusion2Go_3.0_RV_Quick_Install_Guide Fusion2Go_3.0_RV_User_Guide

Uplink Frequency Range (MHz):	698-716 / 776-787 / 824-849 / 1850-1915 / 1710-1755 (G Block Included)
Downlink Frequency Range (MHz):	728-746 / 746-757 / 869-894 / 1930-1995 / 2110-2155 (G Block Included)
Supported Standards:	CDMA, WCDMA, GSM, EDGE, HSPA+, EVDO, LTE and all cellular standards
Input/Output Impedance:	50 Ohm
Maximum Gain:	50 dB
Noise Figure:	≤5 dB
VSWR:	≤2.0
Gain Adjustment:	20 dB (Automatic)
DC Car Charger:	6-15V
Maximum Output Power:	1 Watt EIRP
Cable:	SC-240
Exterior Antenna Cable Length:	40 ft
RF Connectors:	FME Male (both ends)
Power Consumption:	<10W
Dimensions:	5.625″ x 4″ x 1.125″
Weight:	1.43 lbs

Weight	1.43 lbs
Dimensions	5.625 × 4 × 1.125 in
