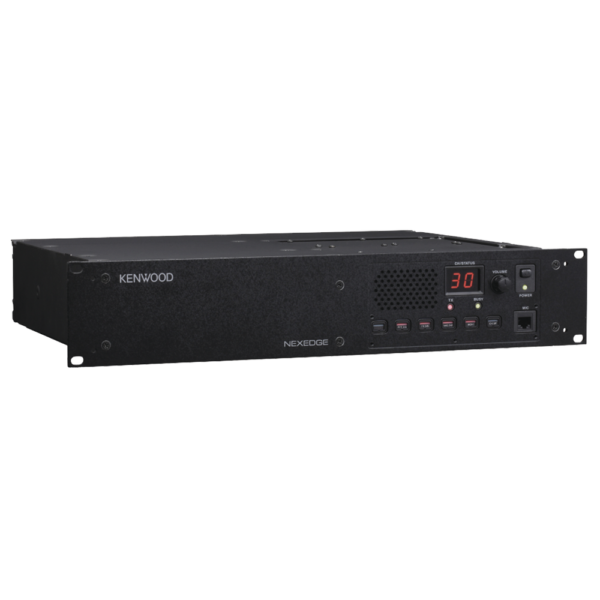

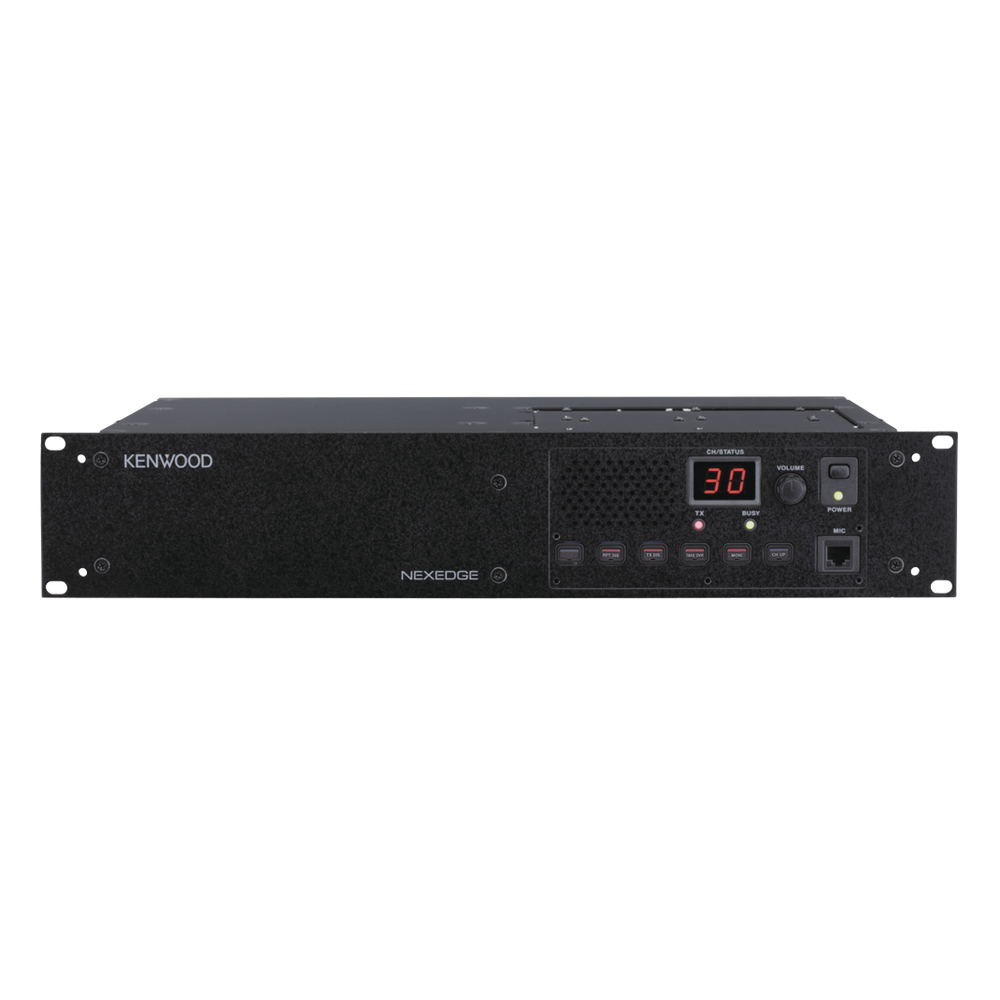

HF Repeater, 400 – 470 MHz, 25 – 40 Watts, 16 Groups, 30 Channels, Truncking option available

– Mix mode.
– Scan on the base operation (Conventional).
– 2 digits LED display.
– Status indicator.
– 6 programmable function keys.
– 4 W front panel speaker.
– Volume control.
– Mic Connector.
– Programming, modem, and remote terminal interface.
– Programmable in/out ports.
– Front keys control, auxiliary output control, and DTMF auxiliary in the monitor.
– Software KPG-129D PC programmable.
– Flash memory for firmware actualization.
– Nexedge 6.25 KHz.

Conventional FM mode.
– 25 and 12.5 Khz Ch.
– 16 tone CTCSS / DCS built-in panel.
– External controller interface.
– TOT.
– EIA for Voting tone generator.

Digital.
– Digital NXDN interface.
– VOCODER AMBE+2.
– 12.5 and 6.25 kHz. channels
– NXDN built-in encryption.

Conventional – Digital
– Digital/FM Analog mix operation.
– 16 RAN built-in panel.
– 1000 ID’s
– Alias sending. (As Base Station) .

Multisite Conventional Digital:
• Link up to 48 sites by IP (req. KTI-3).
• Trough internet VPN connection is necessary (Please contact our engineering department)

Includes:

Power cord
Rack fixing screws
* 3-year warranty
