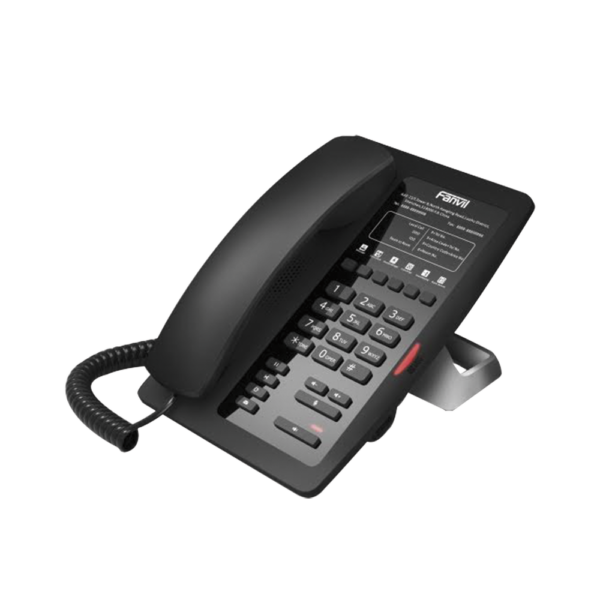

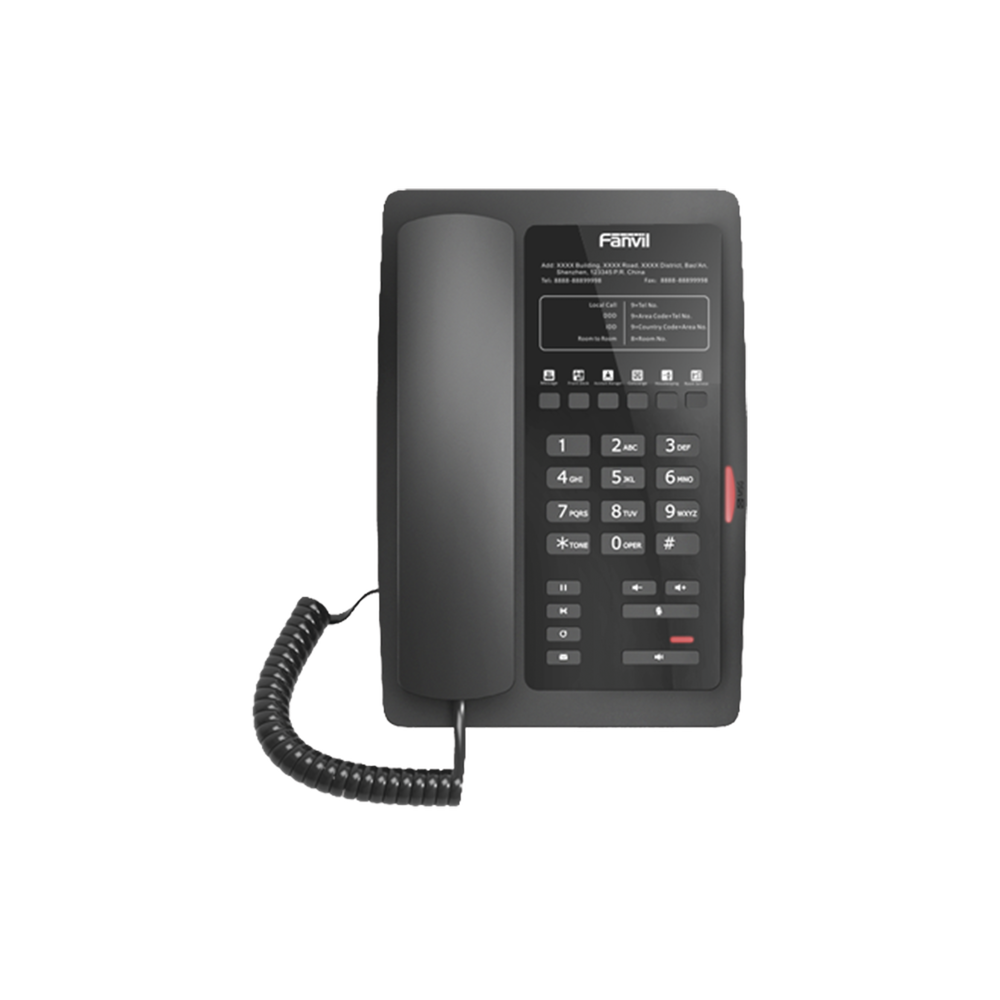

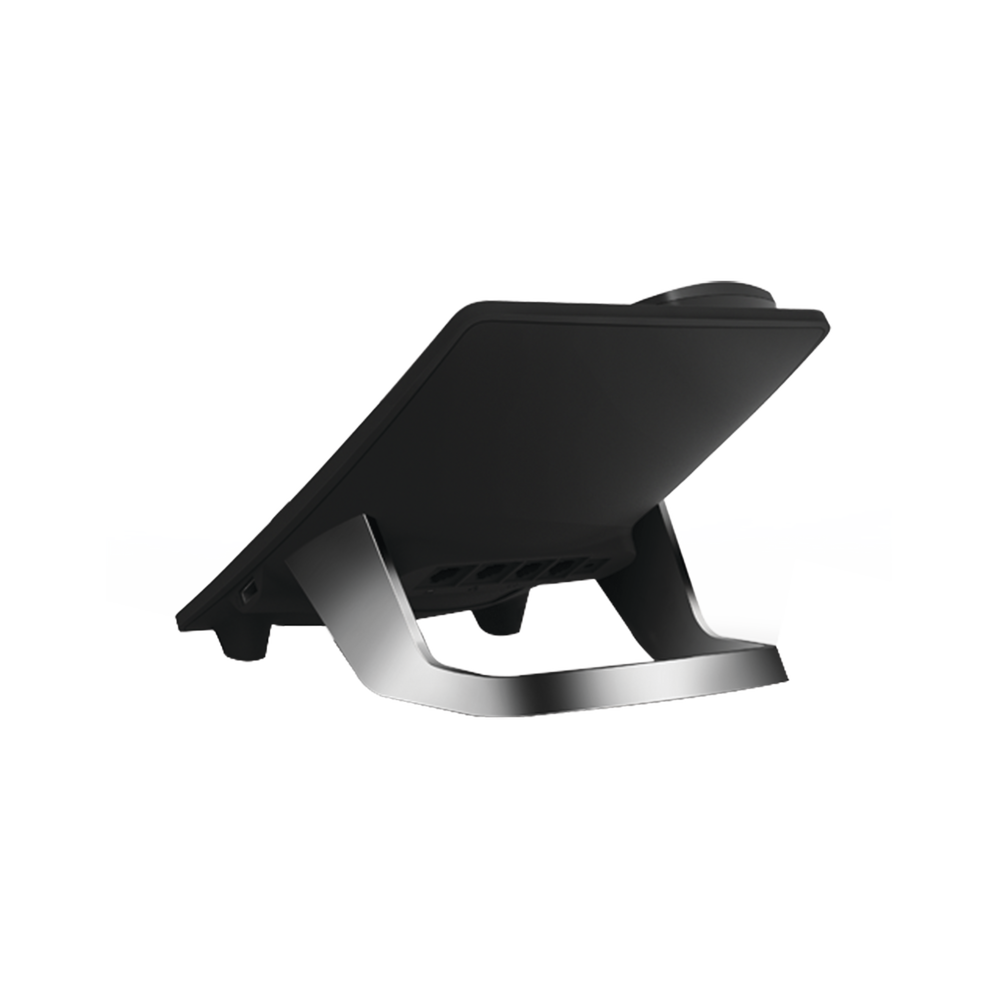

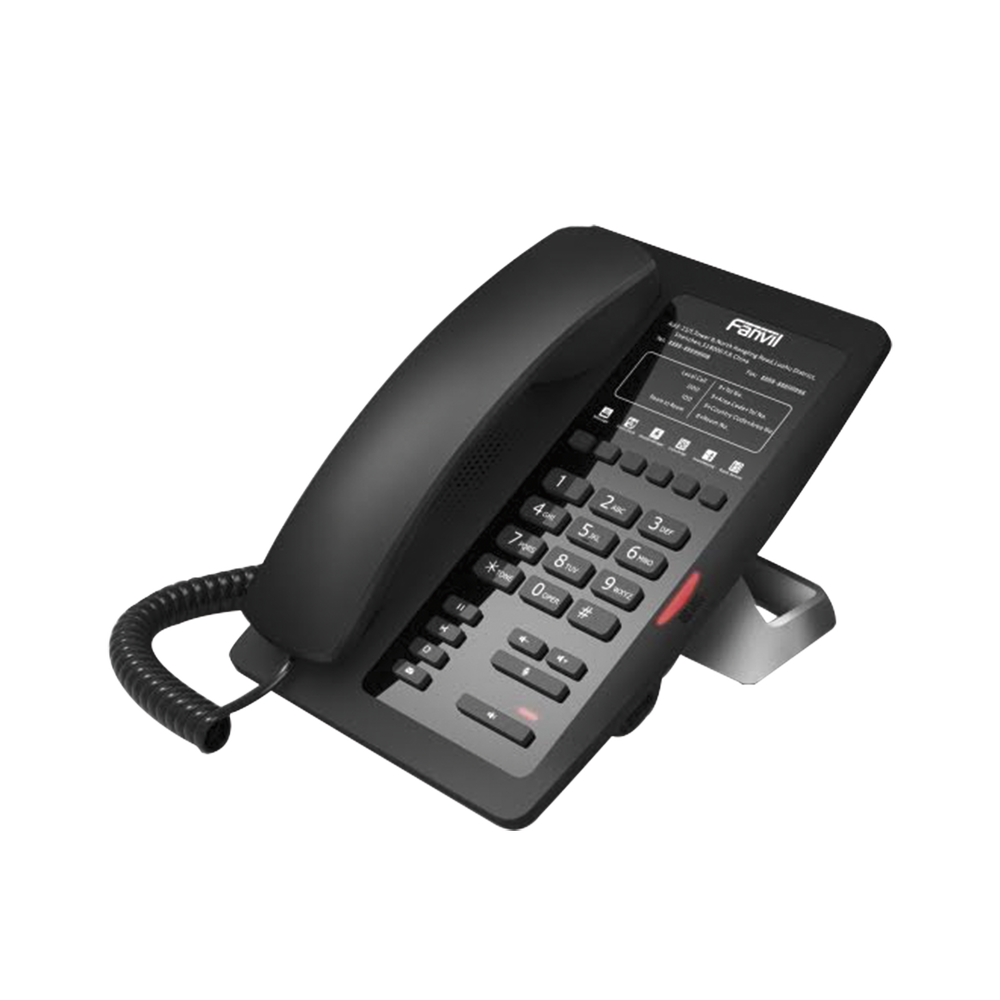

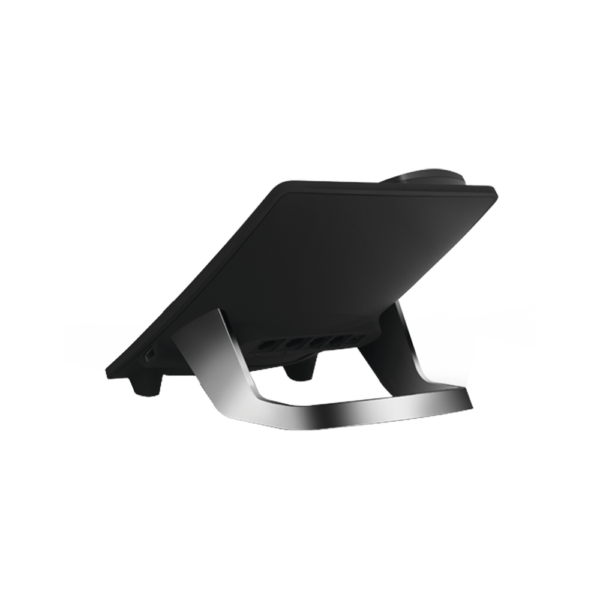

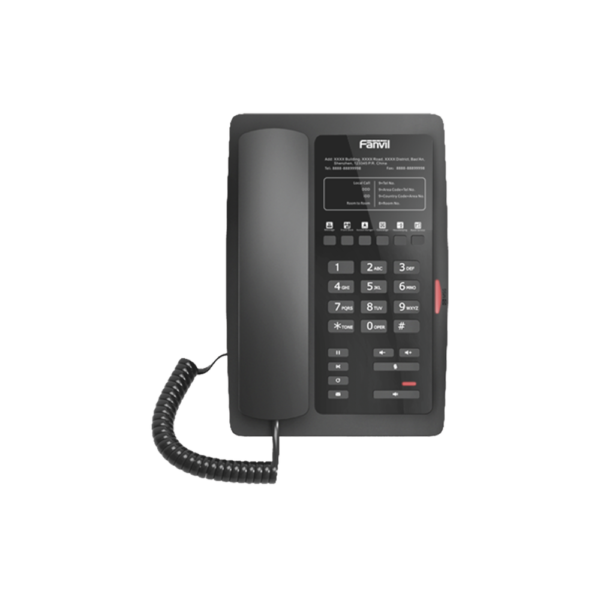

Hotel IP Phone with Numeric Standard Keypad, Professional with 6 Programmable Keys for Quick Service (Hotline)

The H3F is a phone designed for hotel, it is elegant, contemporary appearance, excellent voice quality, together with the corresponding integrated communication platform, it can become the new generation of smart terminal equipment for the hotel.

Phone features

• VxWorks OS

• Support SIP2.0 (RFC3261) and correlative RFCs

• SIP support 2 SIP servers, and backup SIP proxy servers

• Supports SIP UDP / TCP/ TLS

• SIP support SIP domain, SIP authentication (none, basic, MD5), DNS name of the server, Peer to Peer / IP Call

Key Features

• 6 Soft keys programmable

• Multi-languages displayed(web)

Audio Features

• HD voice: HD handset

• Codec: G.711A/u, G.7231 high/low, G.729AB, G.722, G.726-32

• DTMF: In-band, RFC 2833 and SIP INFO

• Full duplex hands- free speakerphone with acoustic echo cancellation

• Voice Activity Detection (VAD)

• Comfort Noise Generation (CNG)

• Background noise suppression

• Adaptive jitter buffers

• Packet loss concealment

• SRTP

• mute

Advanced Features

• Call transfer ( unattended/ attended/ semi-attended )

• Call holding

• Call waiting

• 3-way call conference

• Capable of 2 way conversation

• Join call

• Call pickup

• Call park

• Redial

• Call back

• Call completion

• Hot desking

• Auto redial

• Predial

• SIP messaging, MWI

• Flexible dial plan

• Barring function for outgoing calls

• Do not disturb

• Auto answer

• CLIR(rejects anonymous calls)

• CLIP(to make an anonymous call)

• Dial without registration

• Call logs with missed calls/ incoming calls/ outgoing calls. Each support 300 records(Web)

• Phonebook 500 records(Web)

• Speed Dial (abbreviated dialing)

• Hotline/Warm-line

• Black List/ White List

• Intercom/Intercom barge

• Password dial, DTMF hidden

• Action URL/ active URI

• Voice codec setting for each SIP line

• Multicast

• LDAP, XML phonebook

• Web dial

• Keypad lock, Emergency call

Physical features

• Screen: No screen

• Adapter Input: AC 100-240V

• Adapter Output: DC 5V/1A

• WAN Port -10/100 BASE-T RJ-45 for LAN

• LAN Port-10/100 BASE-T RJ-45 for PC

• Power consumption: IDLE: 2.5W Active: 2.8W

• Operation Temperature: 32 ~ 104°F (0〜40℃)

• Relative Humidity: 10〜65％

• Main Chipset : Broadcom

• SDRAM: 16MB

• FLASH: 4MB

• Dimension: 9.25 x 6.69 x 5.11″ (235x170x130mm)
