Hybrid Alarm Control Panel System, Up to 86 Zones

Three Technologies of Expansions: Wired, Wireless, and Multiplexed

System
• Programming by alphanumeric keypad, software Downloading
• Max. 31 peripherals devices like keypads, modules of expansion and the relays
• Time of input defined by the installer
• 2 zones programmable of input and output with different times
• Automation functions
• Function of auto armed and disarmed
• Supports module of relays 4204 max. 4
• 224 events of memory. The memory can be read with the software COMPASS Downloading
• 8 partitions
• Confirmation of armed and disarmed
• 1 alarm autput of 1.7 A
• Detection of telephonic line cut
• Auxiliary power output of 750 mA
• Power supply included

Zones
• 9 programmable zones, configurable with or without end of line resistor
• 3 methods of expansion: Wired, Wireless, and Vplex
• Zone 1 support up to 16 two-wire smoke detectors
• Support four-wire smoke detectors
• Supports 86 wireless zones adding a receiver 5800 of Honeywell
• Max. capacity of 77 V-Plex zones
• Supports module 4208U for expansion of wired zones
• Supervision of wireless system to 100%
• Reaches up to 60 m in the wireless serie 5800
• Requires; Backup Battery and Programmer Keypad (Not Included)

Users
• 75 users codes
• 6 authority levels: Installer, master, standard, invited, only armed, and coercion
• Rapid armed system
• 5 armed levels: total, partial, night, instant, and maxed
• Alert of open door (chime)

Communication
• Build-in communicator for the alarms central station
• Supports communication formats in 4+2 and CONTAC/ID
• Supported option of double and divided report
• Compatible with third generation of 3i communication systems

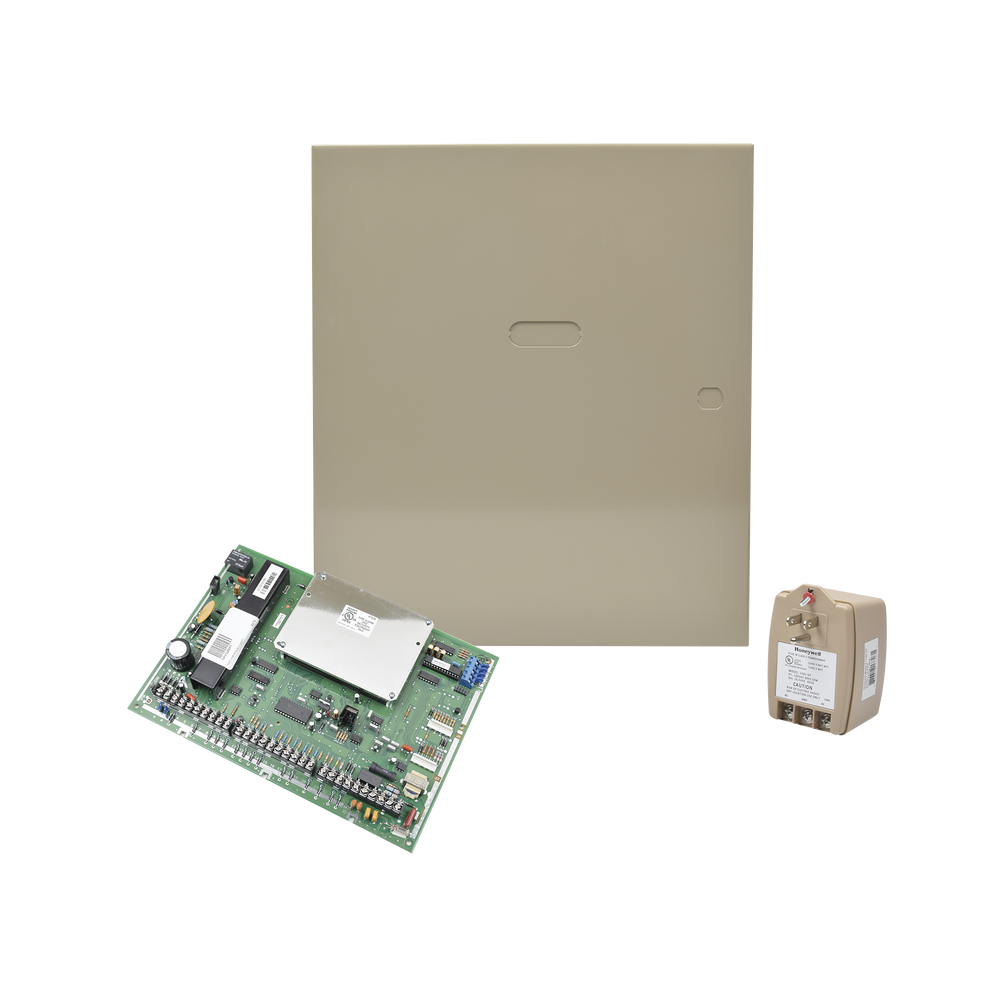

VISTA-50P panel control includes:
• 1 Main board
• 1 Cabinet
• 1 Power supply

*Requires PL712 Backup Battery and Programmer Keypad 6164SP (Not Included)
*1 Year Warranty
