IPC-8Kit9712-POE 8CH H.264H.265 POE NVR kit

Model: IPC-8Kit9712-POE
Brand: ESECLAT

Features：

Support H.264/H.265 video compression;

HDMI/VGA Simultaneous Video Output;

Support DHCP,FTP,DNS,DDNS,NTP,UPNP,EMAIL;

Support ONVIF Protocol;

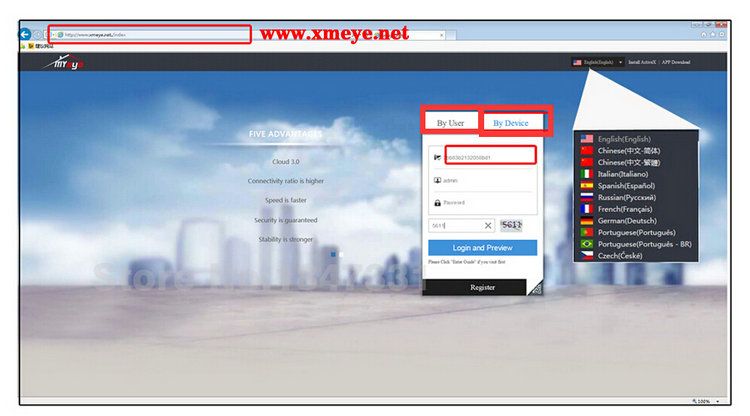

Support WEB,VMS,MYEYE Platform;

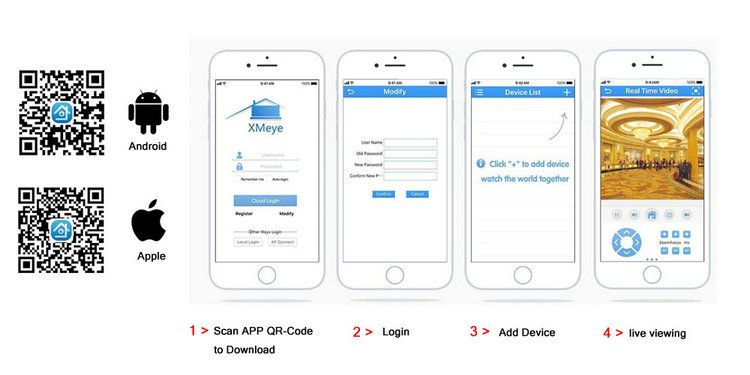

Support Mobile Phone Monitoring(IOS ,Android);

Cloud Services,P2P,Alarm Information Push To Phone;

Support Multi-Language;

Parameters ModelPoE ip camera8CH PoE-NVR
Parameters ModelPoE ip camera8CH PoE-NVR
Image Sensor	720P/1080P/3MP/4MP/5MP optional	Video Compression	H.264/H.265
Lens	3.6/6mm	Input/Record	2MP/3MP/4MP/5MP
Min. illumination	Color: 0.1Lux@F1.2	Playback	1CH*2MP/4MP/5MP
	B/W: 0.01Lux@F1.2	Display	1HDMI,1VGA
Day/Night	IR CUT	Audio In/Out	—
WDR	DWDR	Alarm In/Out	—
Max.IR Distance	20-30m	POE agreement	IEE802.3af and IEEE802.3at self-adaptation
Video Compression	H.264/H.264+/H.265	Network interface	1*RJ45 10M/100M Adaptive Ethernet port ,8 POE ports Support POE power supply
Frames	25fps/PAL,30fps/NTSC	Operator interface	16-bit true color graphic menu operation interface, support mouse operation
Multi-streaming	Dual-stream	Operator interface
IR LED	18pcs SMD LED	PTZ control	Control PTZ device by network
Compatibility	ONVIF	ONVIF	Support
Audio In/Out	no(Optional)	USB	2*USB2.0
Memory Slot	no	Temperature	0 ℃～+55 ℃
Alarm In/Out	no	Humidity	10%-90%RH
Working Temperature	-20℃～65℃	Consumption	<15W(Without HDD)
Power	DC48V	Dimension	25521042mm
Power	DC48V	Power	DC48V
