Features:
Non-contact automatic body temperature detection, brush human face and perform high-precision infrared human temperature acquisition at the same time, fast and high effect
Temperature measurement range 30-45 (℃) Accuracy ± 0.5 (℃)
Automatically identify unmasked personnel and provide real-time warning
Support mid-range temperature measurement and real-time warning of high temperature
Support temperature data SDK and HTTP protocol docking
Automatically register and record information, avoid manual operation, improve efficiency and reduce missing information
Support binocular live detection
Unique face recognition algorithm to accurately recognize faces, face recognition time <500ms
Support human motion tracking exposure in strong backlight environment, support machine vision optical wide dynamic ≥80dB
Adopt Linux operating system for better system stability
Rich interface protocols, support SDK and HTTP protocols under multiple platforms such as Windows / Linux
7-inch IPS HD display
IP34 rated dust and water resistant
MTBF> 50000 H
Support 22400 face comparison library and 100,000 face recognition records
Support one Wiegand input or Wiegand output
Supports fog through, 3D noise reduction, strong light suppression, electronic image stabilization, and has multiple white balance modes, suitable for various fields
Scene demand
Support electronic voice broadcast (normal human body temperature or super high alarm, face recognition verification results)
Tech Specification:
| Model | KT07 |
| Hardware | |
| Chipset | Hi3516DV300 |
| System | Linux operation system |
| RAM | 16G EMMC |
| Image sensor | 1/2.7″ CMOS |
| Lens | 4.5mm |
| Camera Parameters | |
| Camera | Binocular camera supports live detection |
| Effective pixel | 2Mega pixel，1920*1080 |
| Min. lux | Color 0.01Lux @F1.2(ICR);B/W 0.001Lux @F1.2 |
| SNR | ≥50db(AGC OFF) |
| WDR | ≥80db |
| Face Recognition | |
| Height | 1.2-2.2 M, angle adjustable |
| Distance | 0.5-3 Meters |
| View angle | Vertical ±30 degree |
| Reco. Time | ＜500ms |
| Function | Support 22400 faces database and 100000 records |
| Temperature | |
| Range | 30-45（℃） |
| Accuracy | ±0.5（℃） |
| Best Distance | 0.4m |
| Response time | ＜300ms |
| Interface | |
| Internet | RJ45 10M/100M Ethernet |
| interface | |
| Weigand port | Support input/output 26 and 34 |
| Alarm output | 1channel relay output |
| USB port | 1USB port (Can be connected to ID identifier） |
| General | |
| Power input | DC 12V/3A |
| Power | 20W(MAX) |
| Working | 10℃ ～ +50℃ |
| Humidity | 5～90%, no condense |

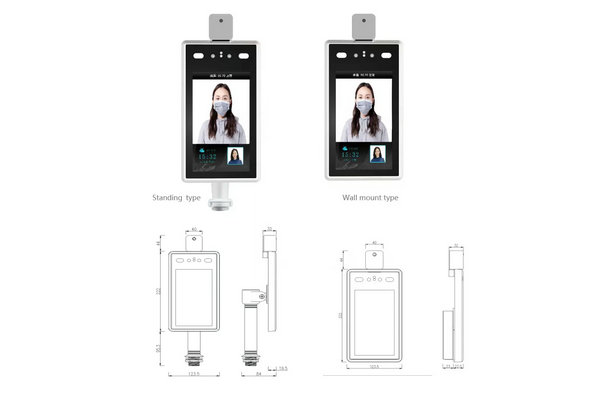

| Dimension | 123.5(W) * 45.5(H) *266(L)mm |
| Weight | 1.9 kg |
| Column Aperture | 27mm |
