One-Door Access Controller ADMS-PUSH option Included High-Security 3 Years Warranty Biometric compatible 20,000 Fingerprint templates

Functions:
• Access control

Capacity:
• Fingerprints: 20,000
• Cards: 30,000
• Events: 100,000
(Expandable event memory with SD memory card, up to 32GB)

Communication:
• TCP/IP
• Wiegand Multi-format input

Hardware:

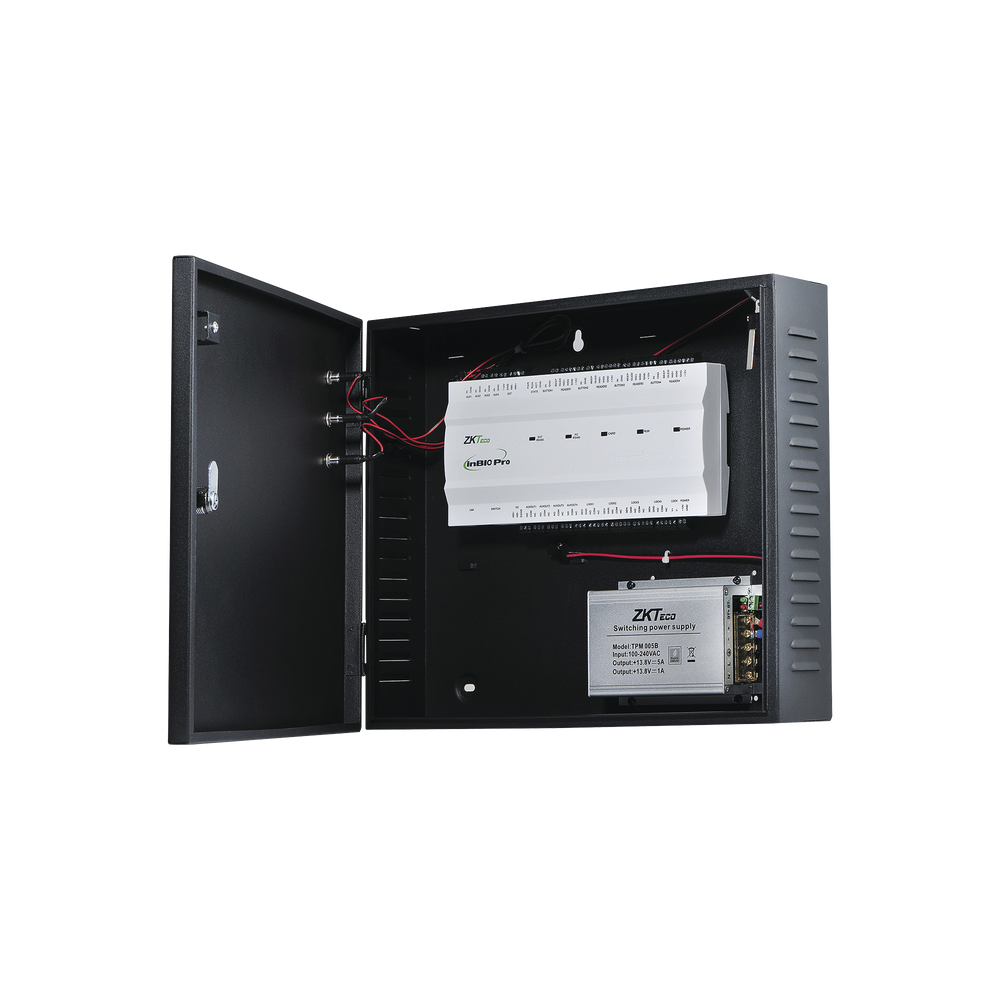

• Metallic cabinet
• Includes power of 12 Vdc / 5 A with charger

Access Control Functions:
• Access control by schedule and doors
• Combinable verification methods
– Fingerprint + Card (With reader F12)
• Multi-user verification
• Door lock
• Anti pass

*Requires ZKBIOSECURITY3.0

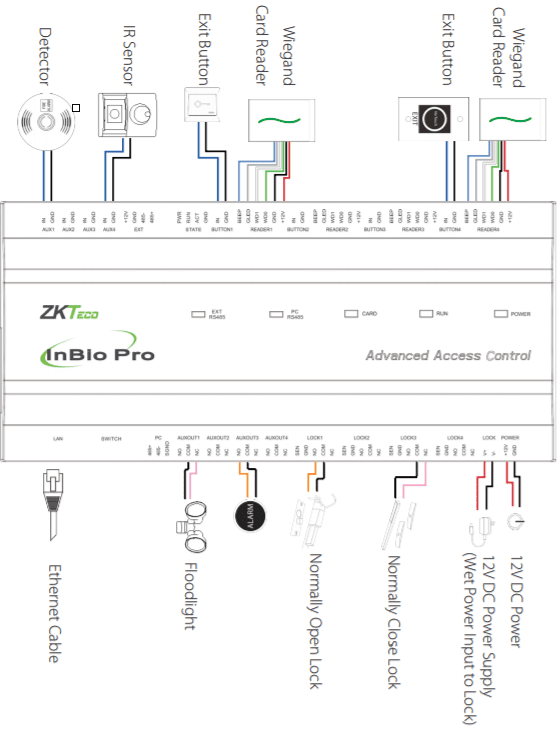

Connections:
• 1 Relay outputs NC/NO/COM for sheets
• 1 Auxiliar relay outputs NC/NO/COM
• Output button and magnetic sensor by door

Power supply:
• 12 Vdc / 220mA

Compatible Lectors:
• Biometric lectors:
– Fingerprint and proximity reader F12 for Indoor / Outdoor
– Supports up to 4 F12 Readers (In and Out Reader)
– USB ZK4000 Reader for fingerprint registration
• Proximity:
– SYSKR600E and SYSKR601E
– Supports 2 readers per door
• Long range readers:
– PRO6RF and PRO12RF

Additional Information:
• Operating temperature: 0 to 55º C
• Dimensions: 350 x 300 x 90 mm

*1 Year Warranty

*The sale of this equipment requires certification by factory. For more information please contact the Engineering department.
