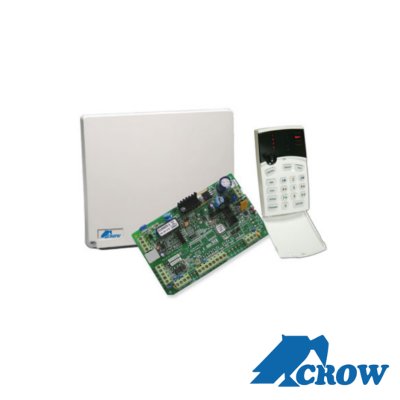

ResidentialCommercial Hybrid Alarm Panel 8 to 16 Zones, Wireless Zones Support, Supplied with LEDs Keypad and a Digital Motion Detectors NEOQUAD

System

-Programming option with the keypad of 16 icons of 16 zones
-Programming option for direct cable to the PC USB type (cable not included requires software)
-Programmable via modem with the software of charge and discharge
-Max. 8 keypads
-Capacity to connect proximity lectors CROW
-Time of input and output defined by the installer
-Functions of auto assembly and un-assembly
-2 Partitions
-Memory of 255 events the past events can be seen in the keypad of icons
-2 Auxiliar outputs to 1.5 A by output. One is set like an output of siren
-2 Additional outputs, 1 type of relay
-Lithium battery to keep the clock, and the programming of automation
-Supervision of cut of the telephonic line, siren, and AC
-Power supply  input of 14 Vac

Zones

-8 basic zones with an end of line resistance
-Option of duplication of zones with resistance
-16 Max. zones
-Capacity to convert 1 or the 16 wireless zones (just add the receptor)
-Supports smoke detectors of 4 wires
-Zones can be configured with or without EOL resistor
-Admits several zones without activity during the time the panel is disarmed
-Internal battery for clock

Users

-100 codes of users
-Each user can have 11 arming levels
-The codes for the user can be of 4 to 6 digits
-Duress code
-Up to 100 proximity cards related with armed, disarmed, and access control

Communication

-Max. 8 numbers to the central monitoring and/or private
-Option of election and sending the event by phone
-Protocols of communication SIA, CONTAC / ID 4 + 2
-Option of communication to the private number
-Option of modules of bi-directional voice
-Compatible with the systems of 3rd generation 3i
-Compatible with the CS47LINK
-1 Year Warranty
-Its suggested a modem for UPLOAD / DOWNLOAD – Model USRobotics 5637 (Not included)

Ideal for residential application / commercials. Now Hybrid ( Wired / Wireless)

Includes
-Plastic cabinet
-Keypad ICON 8 K / B
-SWANQUAD detector

*1 Year Warranty
